Model 6006

6/12/24 Volt

Fleet charging power with a cranking assist rating higher than any other charger in its classification. This heavy-duty fleet charger rejuvenates all standard and maintenance-free 6 Volt, 12 Volt and 24 Volt batteries with five charging positions. 10% MORE STARTING POWER THAN PREVIOUS MODEL.






















Features:

  1. •Five year limited warranty

  2. •Automatic timer with "HOLD"

  3. •UL, cUL, and/or CSA listed for INDOOR AND OUTDOOR USE

  4. •AC and DC circuit overload protection

  5. •Heavy-duty chrome plated handle w/clamp-holder/bar.

  6. •Fan Cooled

  7. •MADE IN USA

Model 6001A

6/12 Volt-550 Amp

The highest performance fast charger on the market. Designed to meet the needs of the most demanding professional with 16 rates of charge including 75 Amp continuous charge with 375 Amps Crank Assist at 12 Volts. 25% MORE ENGINE START THAN PREVIOUS MODEL. UL and CSA listed for INDOOR and OUTDOOR use. "SAFE IN ANY WEATHER"



















Features:

  1. •Five year limited warranty

  2. •Automatic reset AC and DC circuit breakers

  3. •UL and CSA listed for indoor and outdoor use

  4. •500 AMP fully insulated "Flexi-Spring" clamps

  5. •Automatic timer

  6. •Patented "Stop/Go" light

  7. •Heavy-duty chrome plated handle with clamp-holder/bar

  8. •Hinged-steel cover to protect meters and knobs

  9. •Rugged 7 inch tires

  10. •INCREASED STARTING and CHARGING POWER

  11. •MADE IN USA

Model 6002B

6/12/18/24 Volt-600 Amp

The highest performance fleet charger on the market has 80 Amps continuous charge with 400 Amp crank assist at 12 Volts. 33% MORE ENGINE START THAN PREVIOUS MODEL. Longer AC cord and DC leads are STANDARD FEATURES for versatility. UL and CSA listed for INDOOR and OUTDOOR use. "SAFE IN ANY WEATHER”






















Features:

  1. •Five year limited warranty

  2. •Automatic reset AC and DC circuit breakers

  3. •UL and CSA listed for indoor and outdoor use

  4. •500 AMP fully insulated "Flexi-Spring" clamps

  5. •Automatic timer

  6. •Patented "Stop/Go" light

  7. •Heavy-duty chrome plated handle with clamp-holder/bar

  8. •Hinged-steel cover to protect meters and knobs

  9. •Rugged 7 inch tires

  10. •INCREASED STARTING and CHARGING POWER

  11. •MADE IN USA

Model 6009

Booster-Charger

6/12 Volt-230 Amp

A charger with the highest performance crank assist of any 60 Amp charger on the market. Increased starting power. Listed for indoor and outdoor use by both UL and cUL, "SAFE IN ANY WEATHER". This fast starter has more features and higher rating for the price of any competitive charger in its class.

























Features:

  1. •Five year limited warranty

  2. •Automatic timer with "HOLD"

  3. •UL, cUL, and/or CSA listed for INDOOR AND OUTDOOR USE

  4. •AC and DC circuit overload protection

  5. •Patented "Stop/Go" light

  6. •Heavy-duty chrome plated handle w/clamp-holder/bar.

  7. •Fan Cooled

  8. •MADE IN USA

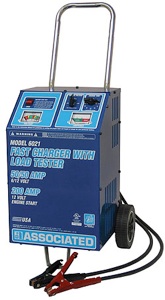

Model 6021

6/12 Volt-with load tester


This fast charger has a UL continuous rating of 50/50/5 Amp with a 200 Amp cranking assist AND built-in 125 Amp fixed load tester. UL and cUL listed for indoor and outdoor use. Has dual meters for enhanced operational knowledge, heavy duty chrome hoop handle and extended limited warranty. MADE IN USA.






























Features:

  1. •6/12 Volt

  2. •UL, cUL listed for indoor and outdoor use

  3. •Fan Cooled

  4. •Extended limited warranty

  5. •Heavy-duty chrome plated handle

Model 6075 Bus Bar Bus Bar set for parallel charging. Ten battery capacity. Use one or combine additional bars for added capacity. Insulated fiberglass backboard with 10 pairs DC charging leads, 10 gauge, 36" long with 300 Amp insulated safety clamps. Comes with 3 ft. 4 AWG cables to connect to charger or additional bus bars. Wt. 24 LBs. DIM. 31.25" x 15.25" x 5.25" MADE IN USA.
Model 6031 Alternator/Battery Tester Tests for defective alternator diodes including GM trio test, and performs complete battery test as well. 125 Amp load checks state of "battery health" on conventional and maintenance-free batteries. Searches for excess starter current and alternator/regulator output voltage. Light-weight, hand-held convenience. MADE IN USA.
Model 6065 Parallel Charger Charges 1 to 10 batteries, in parallel, in less than 24 hours. UL listed. 16 Charge Rates for precise charging. Patented multi-diode rectifier with deep reserve capacity. Use Model 6075 bus bar that includes 10 pairs of charging leads. Model 6078 Parallel Charger available in 230 VAC, 50/60 Hz. MADE IN USA.
6139 Plug-in cable The stainless steel receptacle mounts onto a truck bumper and connects directly to a battery. Reaches stalled vehicles from front, back or side. Includes 25 ft. tangle-free starting cables, side terminal adapters, and polarized LEXAN plug. For flush mount version, combine Model 6125 stainless steel receptacle with Model 6138 cables. MADE IN USA.

Clamp Sets-Made in USA





6199= 400 amps

6202= 500 amps

6205= 800 amps

Model 9002 1.5 amp, 12 volt














Automatic Charger/Maintainer. For all vehicles, can be mounted in the vehicle. Fully automatic with charging status indicated by LED. Reverse polarity and short circuit protection. Standard Master Carton contains 2 units

Model 9006 6/2 amp, 6/12 volt









Manual Economy Charger. From 4 to 6 times the power of 9002 but capable of charging small batteries. Great value for its performance. Standard Master Carton contains 4 units.

Model 9010 10/2 amp, 6/12 volt









Manual Full-Rate Charger. Ideal for charging average battery in 3 to 5 hours. 66% more power than Model 9006. Safely charges small batteries on a 2 Amp setting. Standard Master Carton contains 4 units.

Model 9014 10/2 amp, 6/12 volt









Automatic Full-Rate Charger. Substantially reduces risk of overcharging. Manual 6 Volt position for lower voltage requirements. Great for standard, maintenance-free, deep-cycle, and small batteries. Standard Master Carton contains 4 units

Model 9060 10/2/55 amp, 6/12 volt












Automatic Charger with Engine Starter. Automatic 12 Volt setting turns off at full charge and turns back on if battery needs more power. Green LED signals "COMPLETE CHARGE". Red LED indicates "REVERSE HOOK-UP". Separate selection for help starting vehicle. Manual 6 Volt position for lower voltage requirements. Standard Master Carton contains 4 units.
